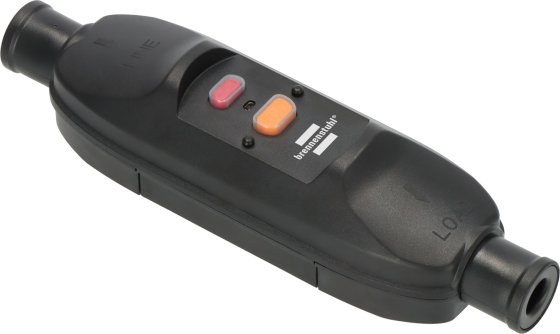

PRCD mobile personal protection circuit breaker with RCD and 2-pole disconnection for cable mounting (suitable for outdoor use, IP66, 10mA)
Описание
Описание
Thanks to its IP66 protection rating, the type A Personal Protection Intermediate Switch is suitable for outdoor use. It protects against dangerous electric shocks. Thanks to the intermediate switch, residual currents are recognised immediately and disconnected from the mains at lightning speed. The residual current circuit breaker with two-pole disconnection also impresses with the following features:
- Suitable for 3G0.75² to 3G2.5² cables
- Voltage: 240V
- Max. current carrying capacity: 16A
- Rated residual current: IΔn = 10mA
RCD personal protection switch
- An RCD (residual current circuit breaker) is an electrical protective device that is primarily used to protect against electric shocks
- The RCD recognises the difference between the incoming and outgoing current in a circuit and automatically switches off the circuit in the event of a residual current
- When used for personal protection, a residual current device must trip and interrupt the circuit at a residual current of 30mA at the latest

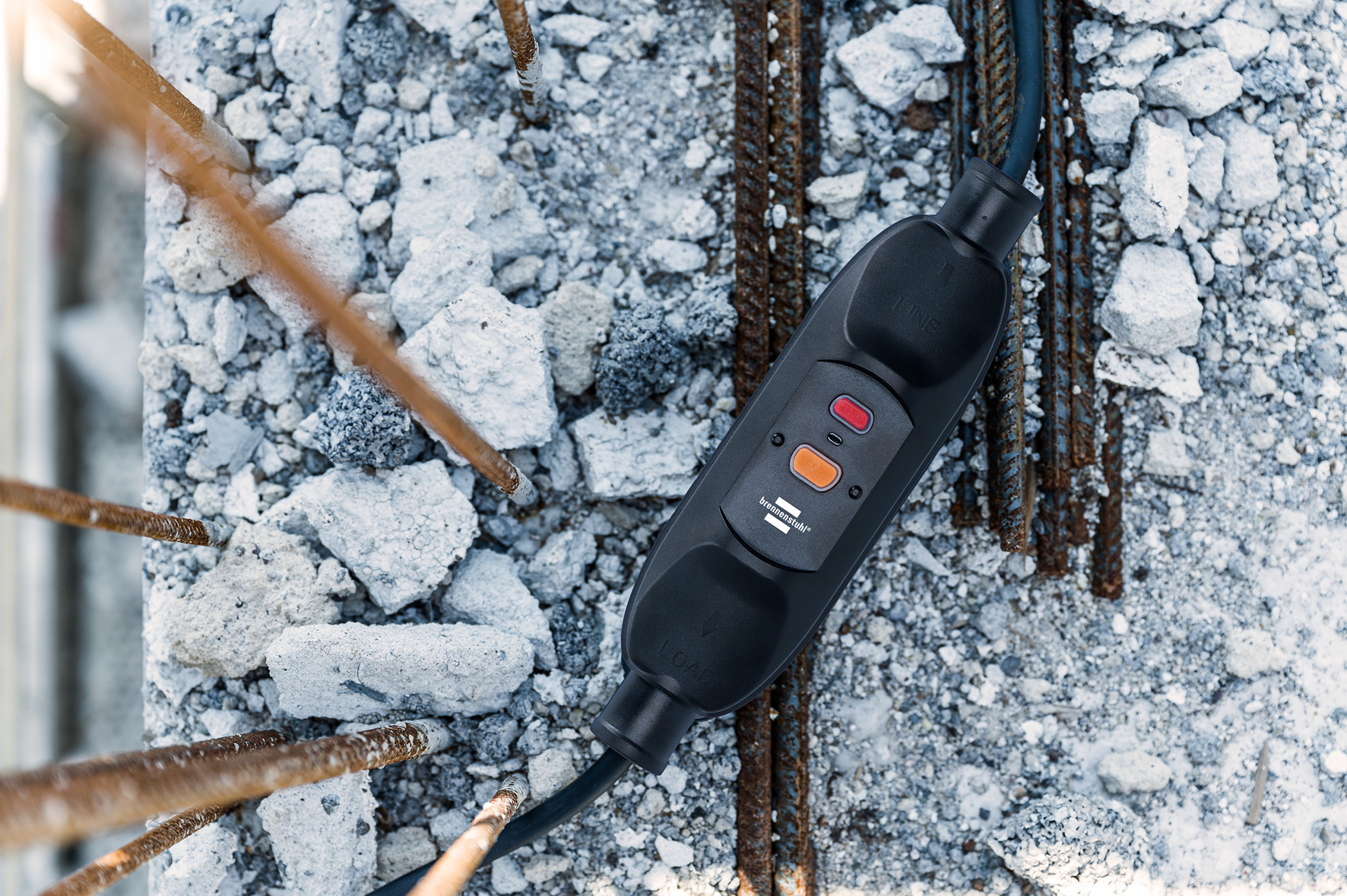

Use
- The electronic residual current device (PRCD) is a highly sensitive, mobile protective device that prevents dangerous accidents caused by contact with live wires or parts
- It is used to ensure the safe use of equipment during construction and assembly work
- Even with small leakage currents (electrical faults) of at least 10mA, the device automatically switches off the power supply within a few milliseconds
Технические данные
Технические данные
- Max. current carrying capacity: 16 A
- Nominal input voltage: 230 V
- Degree of protection (IP): IP66
- Area of use: Outdoor
- Length of product (without packaging): 21 cm
- Width of product (without packaging): 5,60 cm
- Height of product (without packaging): 5 cm
- Weight of product (without packaging): 0,23 kg
Scope of delivery
Scope of delivery
PRCD Mobile Personal Protection Circuit Breaker BDI-Z 1 10 IP66
Загрузки
Загрузки
All products are subject to technical changes
