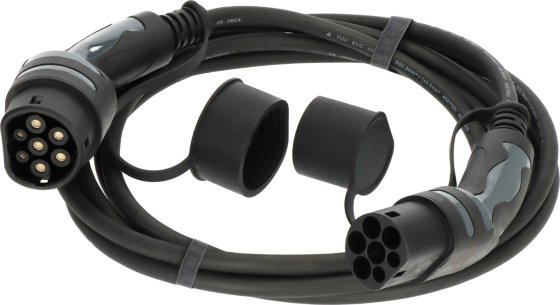

EV type 2 charging cable 11kW (e-mobility type 2 charging cable 7m, IP55, 3-phase, mode 3 charging cable with bag for electric & hybrid vehicles)

Описание

The EV type 2 charging cable 11kW with a length of 7m enables simple, fast and three-phase charging at public and private charging stations and wallboxes. The charging cable is supplied with a practical transport bag for easy transport and safe storage. This makes it easy to transport the cable and store it safely - whether in the vehicle or at home. All in all, this EV Charging Cable offers a fast, safe and convenient way to charge electric & plug-in hybrid vehicles with a type 2 vehicle plug. With its robust properties, easy handling and practical bag, it is a reliable charging solution for electric vehicles and plug-in hybrids. The type 2 charging cable also impresses with the following features:

• Plug/coupling: type 2 to type 2
• The type 2 plug or coupling is drive-over safe in accordance with IEC 62196
• Charging mode: Mode 3
• Phases: 3-phase
• Cable length: 7m
• Rated current: 20A
• Rated voltage: 480V AC
• Ambient temperature: -30°C - +50°C
• Protection class plugged in: IP65
• Protection class unplugged with protective cap: IP55

Charging power

• Maximum charging power of 11 kW.

Charging current

• Maximum charging current of 20A.

Protected against dust and water jets

• Protection against contact and internal dust deposits
• Also protected against water jets (nozzle) from any angle

Reliable, safe charging solution from the power distribution expert

• Type 2 plug and coupling have robust protective caps that provide reliable protection against moisture and dirt
• The cable is protected from damage or abrasion by a thick insulating jacket
• For operating and storage temperatures of -30°C - +50°C
• The type 2 plug or coupling is drive-over safe in accordance with IEC 62196
