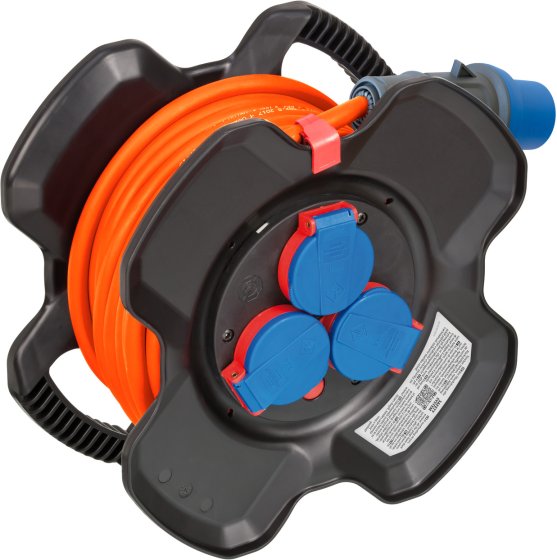

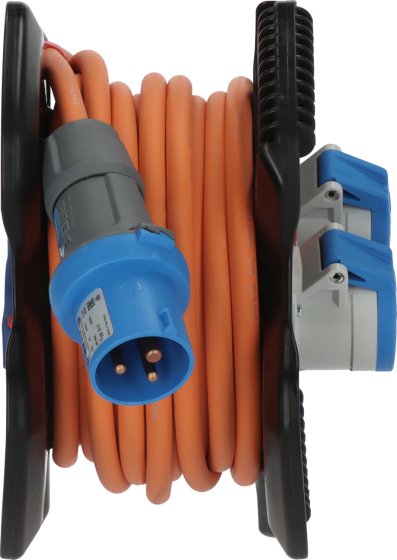

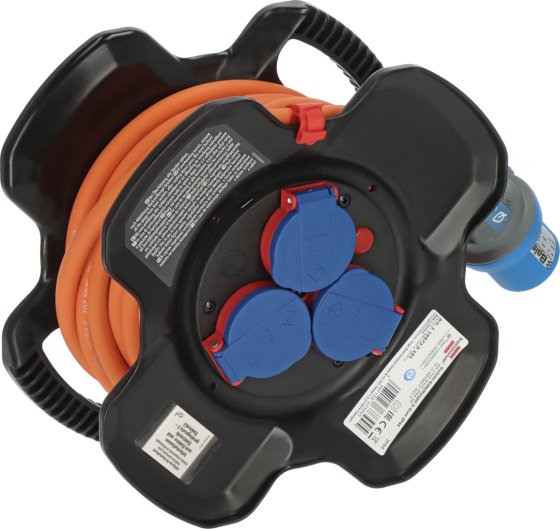

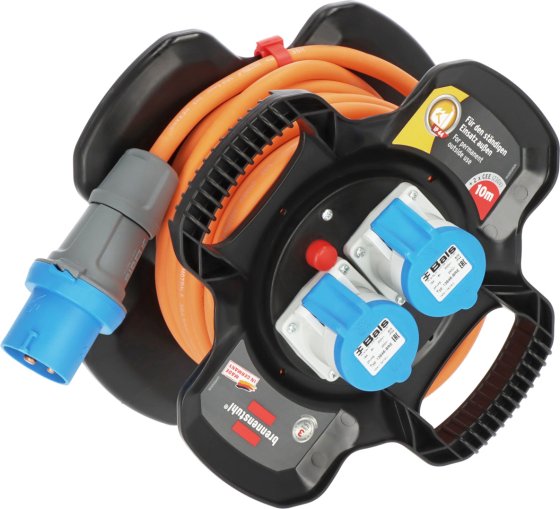

CEE cable drum made of special rubber mixture (10m cable in orange, camping cable drum for permanent outdoor use IP44, 2x CEE sockets, 3x protective contact sockets, Made in Germany)
Описание
The 10m CEE cable drum, consisting of a special rubber mixture for continuous loads, is ideal for continuous outdoor use thanks to the IP44 protection class and the robust RN cable. The rubber cable drum for professional use with 3 splash-proof protective contact sockets with self-closing covers, CEE plugs and 2 CEE sockets is resistant to various oils, greases, petrol and acids, UV and ozone radiation. The camping cable drum also convinces with the following properties:
- Compact and robust lightweight with integrated handle
- With 1-pole safety cut-out and overheating protection
- Protection class IP44
- Cable length: 10m
- Cable designation: H07RN-F 3G2.5
- Cable quality: rubber-neoprene
- Cable colour: orange
- A minimum cross-section of 2.5mm is specified for the connection of caravans and motor homes with a rated current of 16A.
- A smaller conductor cross-section is not permitted for connecting caravans or motor homes on campsites.
In the case of the X-Gum, the decision was consciously made in favour of the shape of a simple cable reel with a reel body made of a special rubber compound, which, apart from the socket insert, is made of a single casting. This ensures the compact, stable and lightweight design. With brennenstuhl® cable reels made of a special rubber compound, you are well equipped for professional use: resistant to various oils, greases, petrol and acids, UV and ozone radiation.
- The correct connection cable is so-called heavy rubber hose cable with the cable designation H07RN-F (or equivalent).
- Rubber cables are protected against petrol, oils and other liquids, are insensitive to the effects of weather and UV radiation and, unlike hard plastic, do not become porous.
- The continuous maximum length of 25 m cable (+/- 2 m) for connecting the caravan must not be exceeded.
- With cable drums, the cable must always be completely unrolled when in use!
Технические данные
- Cable designation: H07RN-F 3G2,5
- Cable length: 10 m
- Cable quality: Rubber-Neoprene
- Capacity in coiled state 230V: 1500 W
- Capacity in uncoiled state 230V: 3500 W
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- Automatic cable winding: No
- With CABLEPILOT: No
- With carrying handle: Yes
- Usage: Camping/ maritime
- Housing material: Plastic/ rubber
- With plug storage: No
- Number of CEE socket outlets: 2
- Number of earthed socket outlets: 3
- Degree of protection (IP): IP44
- Area of use: Outdoor
