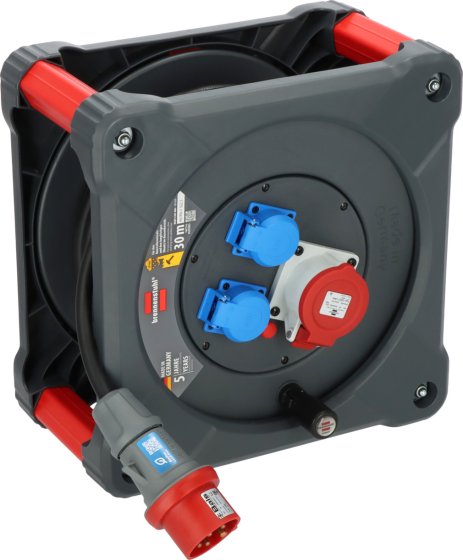

Professional CEE cable reel KD 3200 C1 with all-round roll-over protection, CEE plug, CEE socket outlet and 2x protective contact socket outlets (30m H07RN-F 5G2.5 cable, construction site use and permanent outdoor use, Made in Germany)
Описание
The Professional CEE cable reel with a CEE plug (400V/16A), 1 CEE socket outlet (400V/16A) and 2 splash-proof protective contact sockets (230V) is perfect for permanent outdoor use, for example on construction sites, thanks to its robust RN cable and IP44 protection rating. The extension cable reel with all-round roll-over protection is stable on all four sides and therefore ensures perfect cable routing on all four sides. The CEE cable reel with robust carrying handles and plug garage on all four sides also impresses with the following features:
- Earth contact sockets distributed on separate phases
- With 3-pole safety cut-out and overheating protection
- Large, sturdy folding twist handle for effortless winding and unwinding of the cable
- Reel body cold impact resistant down to -25 °C
- With drum brake
- RN cable is very robust, oil-resistant and particularly suitable for professional use
- RN cable is approved for harsh building conditions in accordance with VDE 0100 Part 704
- Protection class: IP44
- Cable length: 30m
- Cable designation: H07RN-F 5G2.5
- Cable colour: black
- Category 2 equipment (K2 DGUV 203-005): Used for rough operation with high mechanical, physical and chemical influences
- Power when rolled up 230V: 1000W
- Power when unrolled 230V: 3400W
- Protection class II

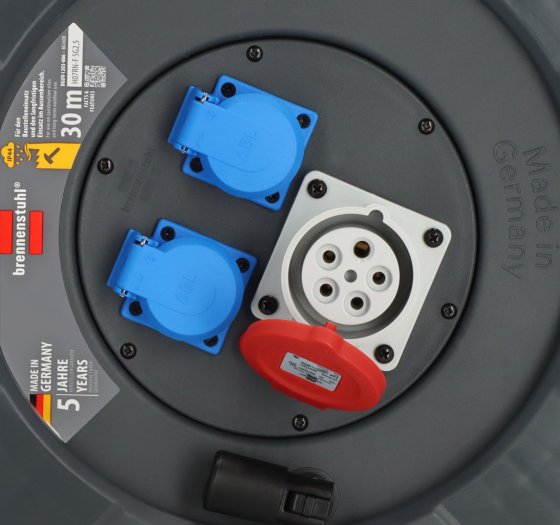

- CEE socket: 1x CEE 16A 3P+N+PE (5p) 400V
- CEE plug: CEE 16A 3P+N+PE (5p) 400V

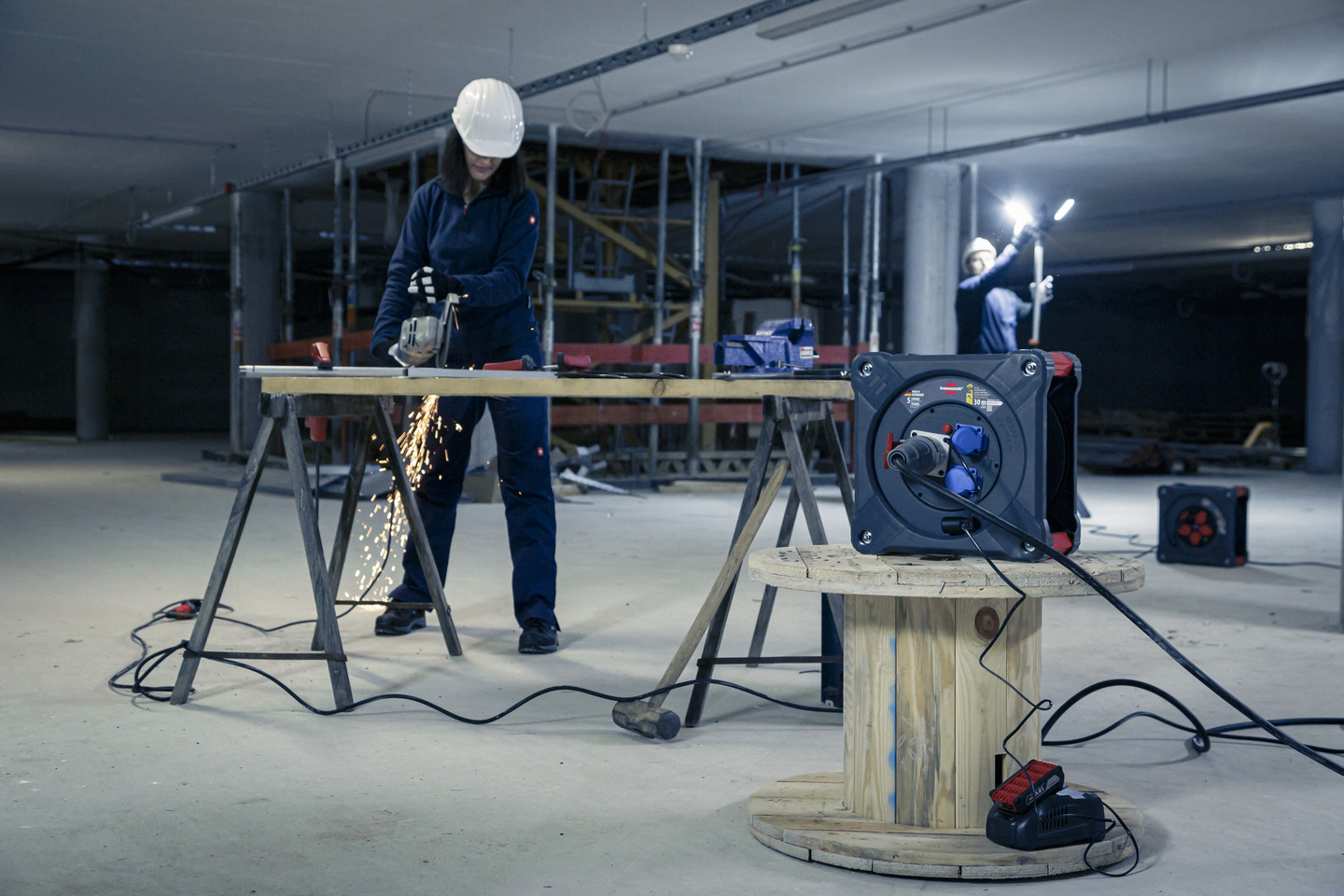

The Professional KD cable reel is characterised by its all-round roll-over protection, which enables a stable position on all four sides and ensures optimum cable routing.
Технические данные
- Cable designation: H07RN-F 5G2,5
- Cable length: 30 m
- Cable quality: Rubber-Neoprene
- Capacity in coiled state 230V: 1000 W
- Capacity in uncoiled state 230V: 3000 W
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- Automatic cable winding: No
- Reel diameter: 320 mm
- With CABLEPILOT: No
- With carrying handle: Yes
- Usage: Trade/ construction sites
- Housing material: Plastic
- With plug storage: Yes
- Number of CEE socket outlets: 1
- Number of earthed socket outlets: 2
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Additional cable length: 0 m
- Capacity in coiled state 400V 16A: 2400 W
- Capacity in uncoiled state 400V 16A: 9000 W
