CEE cable reel with 25m cable in orange (camping cable reel with CEE angle coupling incl. earth contact combination socket + CEE plug, for outdoor use, Made in Germany)
Описание
Описание

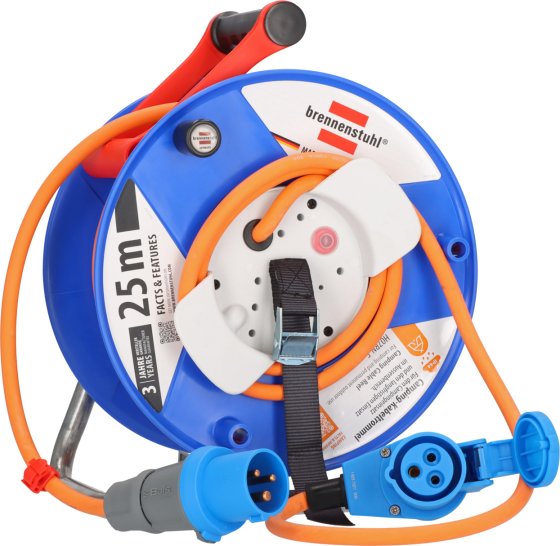

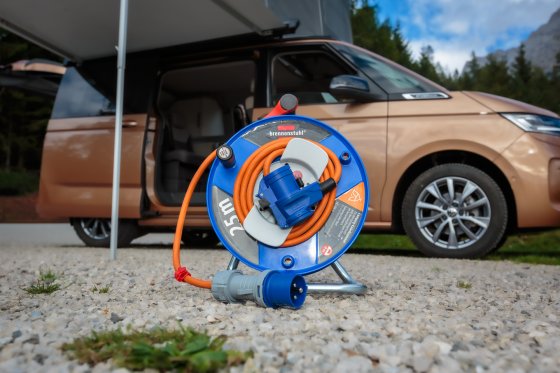

The Garant G CEE 3 IP44 camping/maritime cable reel with 25m cable length convinces with its quality and safety in all areas. The CEE cable reel is ideal for outdoor use, such as camping. It also convinces with the following features:

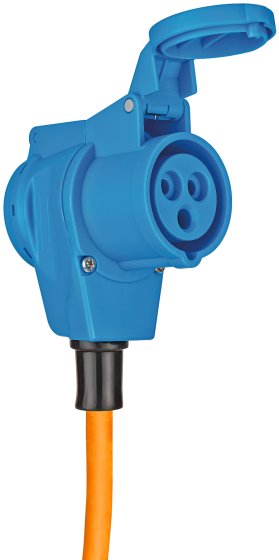

- CEE angled coupling 230V/16A including earth contact combination socket 230V with self-closing lid + 230V/16A CEE plug
- Cable designation: H07RN-F 3G2.5
- The RN cable is very robust, oil-resistant and particularly suitable for professional use

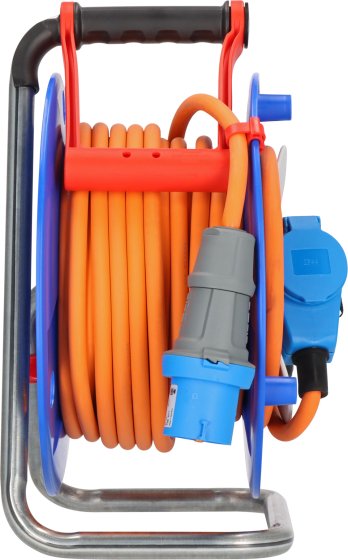

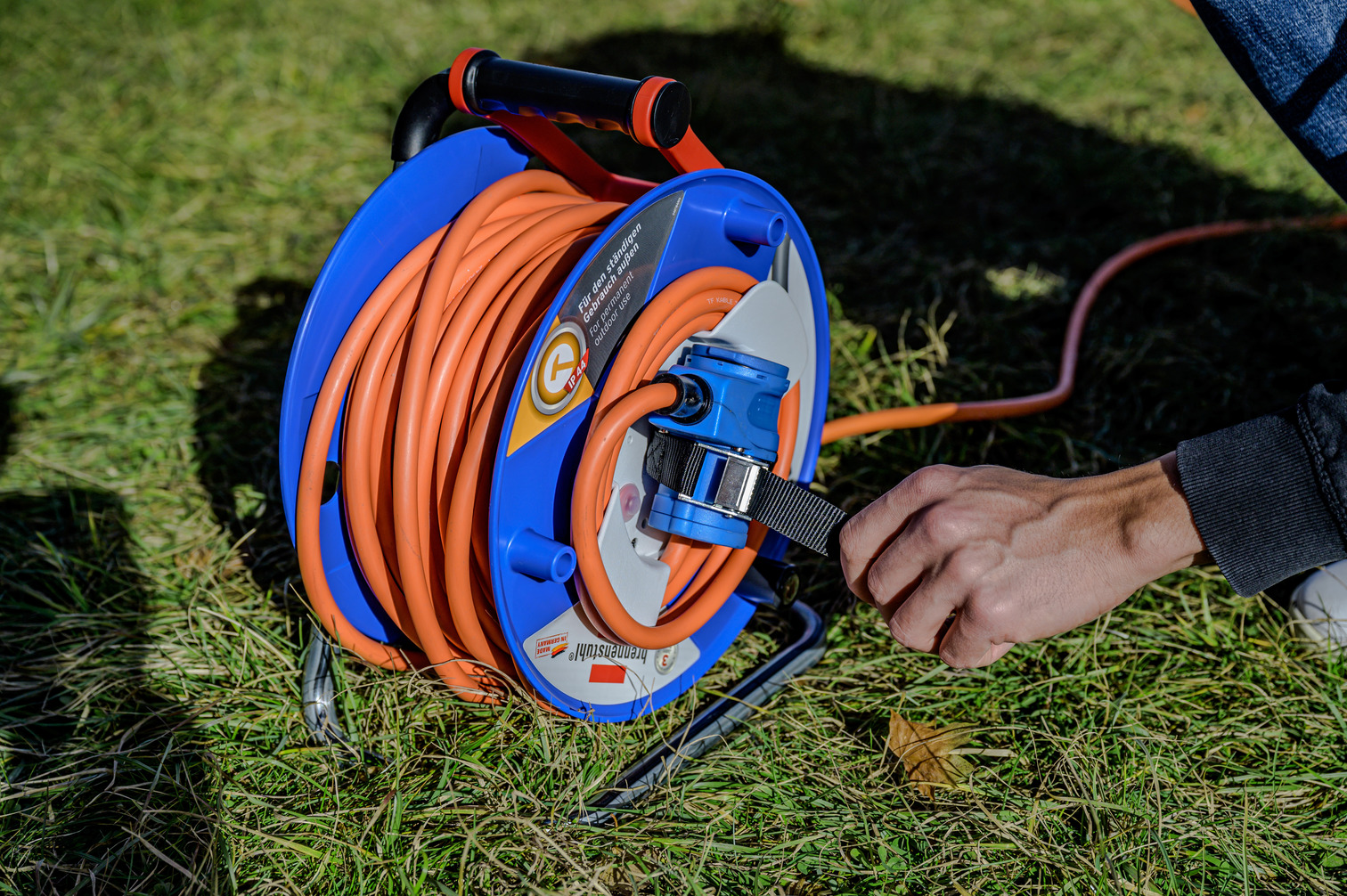

Cablepilot
- Prevents the cable from slipping off the cable reel
- Guides the cable onto the drum during rewinding
- Ensures even distribution of the cable on the reel

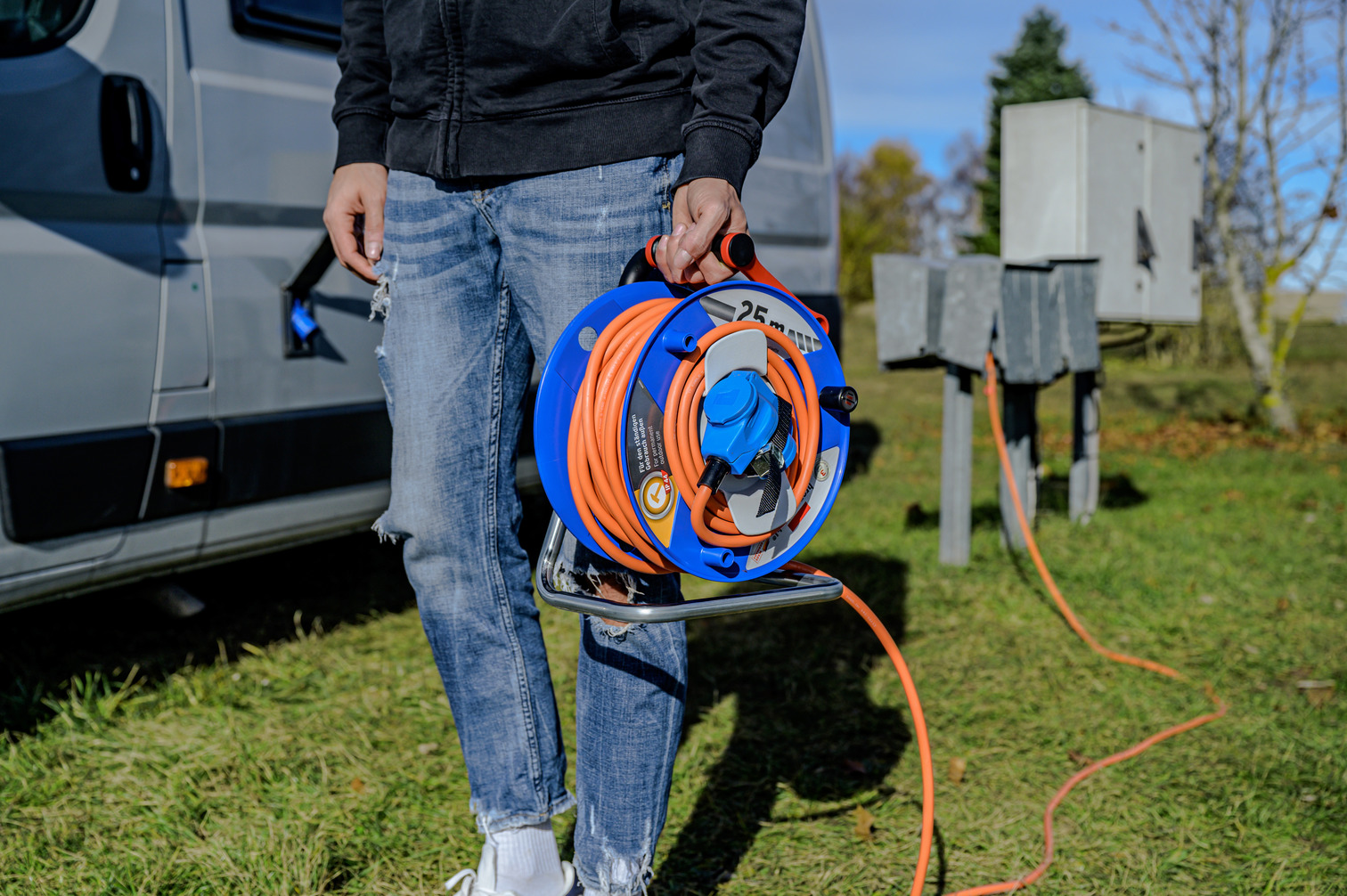

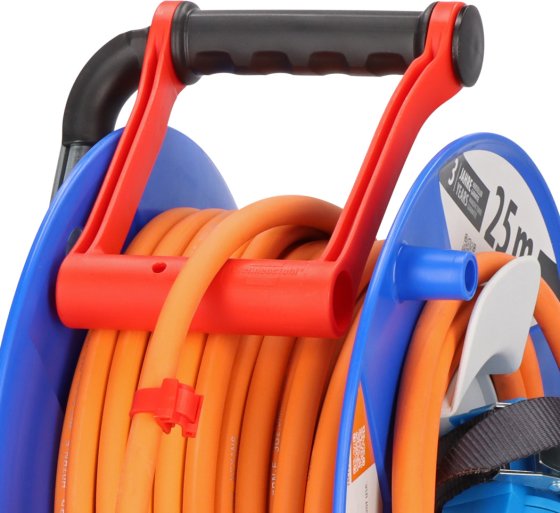

- Practical carrying handle that can also be used to hang up the cable reel
- Can be rolled up from both sides
- Plug garage for storing the plug
The right wire diameter
- A minimum cross-section of 2.5mm is specified for the connection of caravans and motor homes with a rated current of 16A.
- A smaller conductor cross-section is not permitted for connecting caravans or motor homes on campsites.
The right connection cable
- The correct connection cable is so-called heavy rubber hose cable with the cable designation H07RN-F (or equivalent).
- Rubber cables are protected against petrol, oils and other liquids, are insensitive to the effects of weather and UV radiation and, unlike hard plastic, do not become porous.

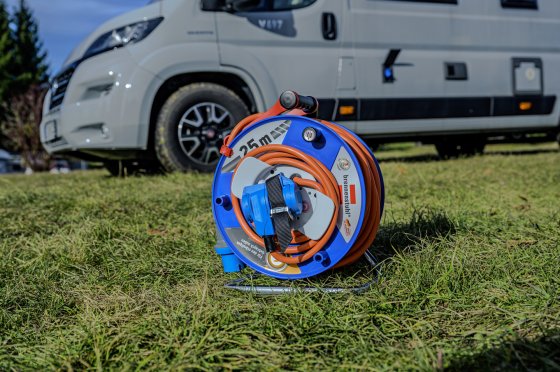

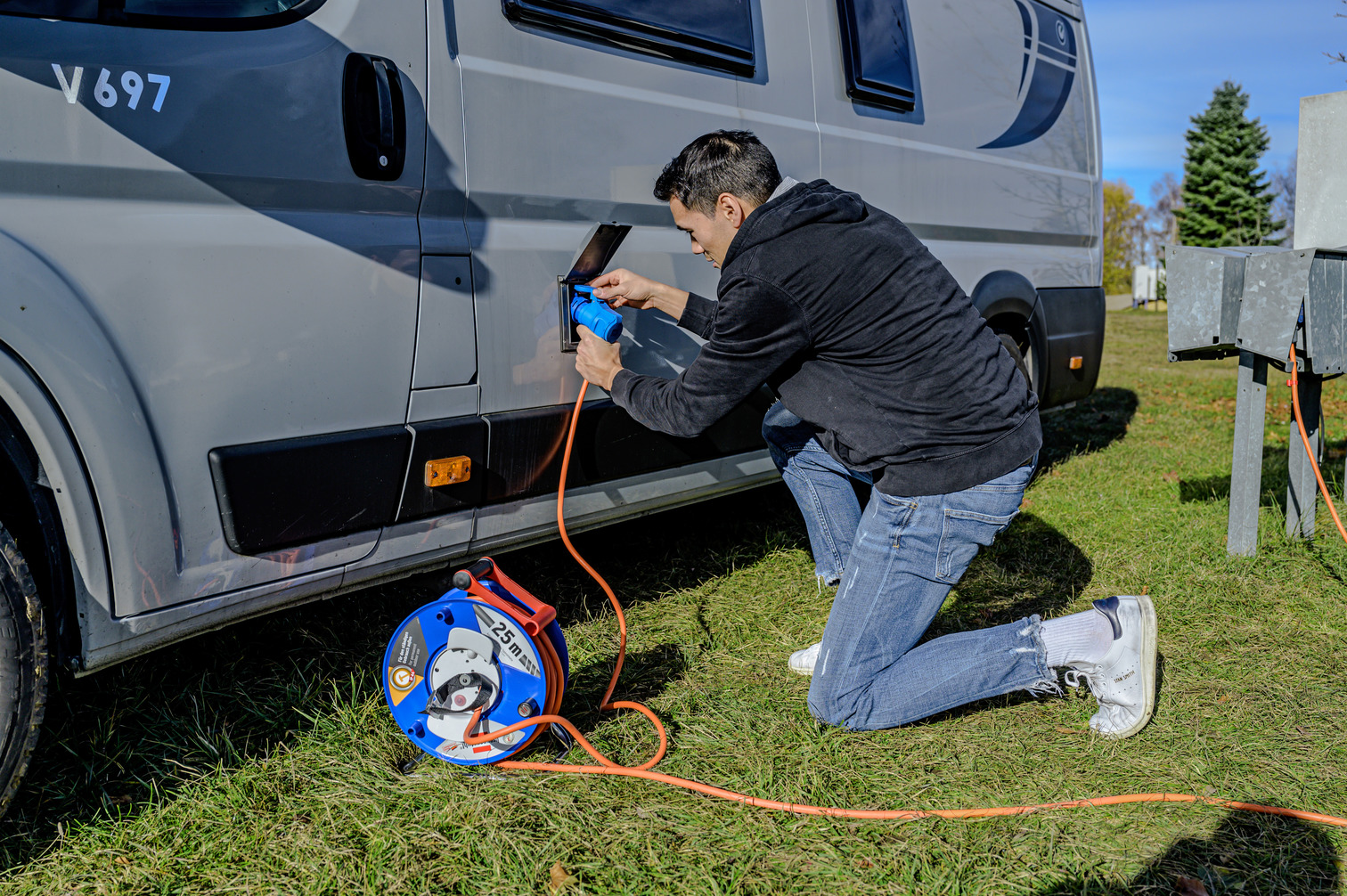

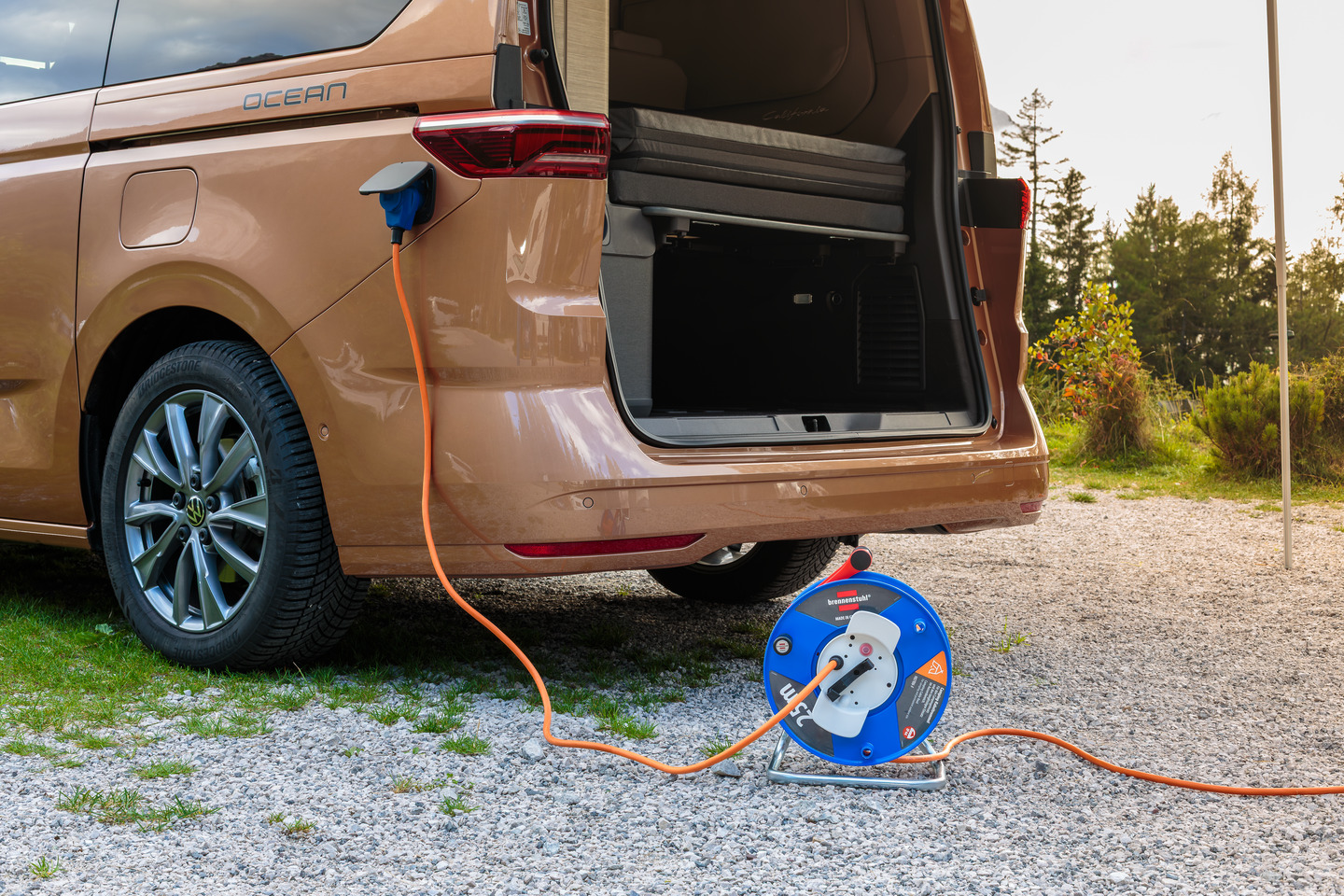

The right cable length on the campsite
- The continuous maximum length of 25 m cable (+/- 2 m) for connecting the caravan must not be exceeded.
- With cable drums, the cable must always be completely unrolled when in use!
Signal colours on the campsite
- The orange signal colour makes you and people in the vicinity aware of cables lying around and potential tripping hazards.
Технические данные
Технические данные
- Cable designation: H07RN-F 3G2,5
- Cable length: 23 m
- Cable quality: Rubber-Neoprene
- Capacity in coiled state 230V: 1300 W
- Capacity in uncoiled state 230V: 3500 W
- With residual current circuit breaker (RCCB): No
- With Bretec: No
- Automatic cable winding: No

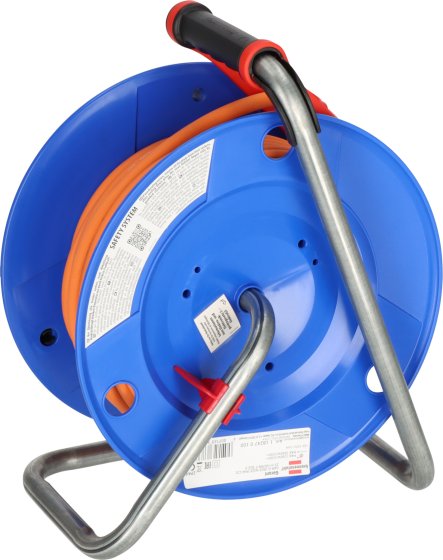

- Reel diameter: 290 mm
- With CABLEPILOT: Yes
- With carrying handle: Yes
- Usage: Camping/ maritime
- Housing material: Plastic
- With plug storage: Yes
- Number of CEE socket outlets: 1
- Number of earthed socket outlets: 1
- Degree of protection (IP): IP44
- Area of use: Outdoor
- Additional cable length: 2 m
