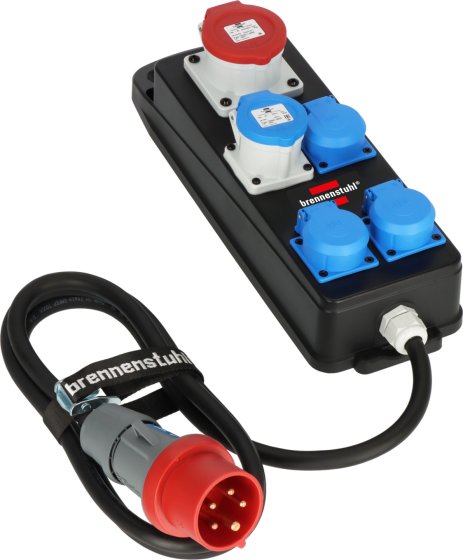

Portable Power Distributor BSV P (2m cable, 3x 230V/16A sockets, 1x CEE 230V/16A, 1x CEE 400V/16A, construction site use and permanent outdoor use IP44, Made in Germany)
Описание
Описание

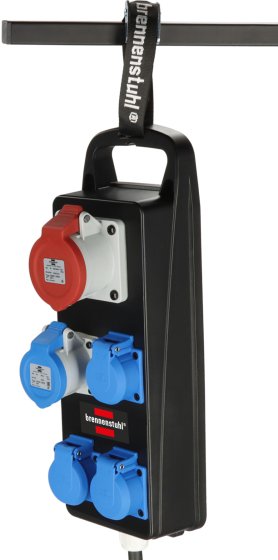

The Portable Power Distributor BSV P with 3 earthed sockets 230V/16A, 1 CEE socket 230V/16A and 1 CEE socket 400V/16A is the ideal solution for outdoor use, e.g. on construction sites. With its splash-proof housing made of a special rubber compound and quality sockets in accordance with VDE 0620-1, the robust multiple distributor is resistant to various oils, greases, petrol and acids, UV and ozone radiation. The robust housing is suitable for applications from -30°C to +80°C and can be flexibly mounted thanks to the fastening strap and four screw holes - for a reliable power supply wherever it is needed. It also impresses with the following features:
- Cable length: 2m
- Cable designation: H07RN-F 5G2.5
- Protection class: IP44
- Plug: CEE 400V/16A 5-pin/-pin

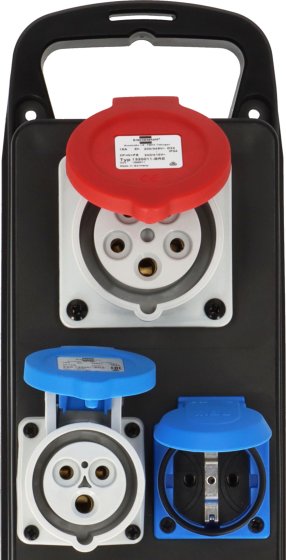

- 3x protective contact sockets 230V/16A
- 1x CEE socket 230V/16A 3-pole/pin
- 1x CEE socket 400V/16A 5-pin/-pin
- Max. electrical load capacity: 11,000W
Protected against foreign bodies and splash water
- Protection against splash water from all directions
Технические данные
Технические данные
- Cable designation: H07RN-F 5G2,5
- Cable length: 2 m
- Cable quality: Rubber-Neoprene
- Max. electr. load capacity: 11000 W
- Nominal input voltage: 400 V
- With carrying handle: Yes
- Housing material: Plastic/ rubber
- Number of CEE socket outlets total: 2
- Number of socket outlets total: 5
- Number of earthed socket outlets: 3
- Degree of protection (IP): IP44
- Suitable for outdoor area: Yes
- Length of product (without packaging): 12 cm
- Width of product (without packaging): 21 cm
- Height of product (without packaging): 43 cm
- Weight of product (without packaging): 1,78 kg
Загрузки
Загрузки
All products are subject to technical changes
